spiral wood roof

Like a tree in a densely-packed forest, this Tokyo home by Mount Fuji Architects (images by Kenichi Suzuki) is surrounded on all sides with nowhere to grow but up – and nowhere to focus on the ground level except internally. In classic Japanese style, however, this small-lot limitation was turned into a design opportunity.

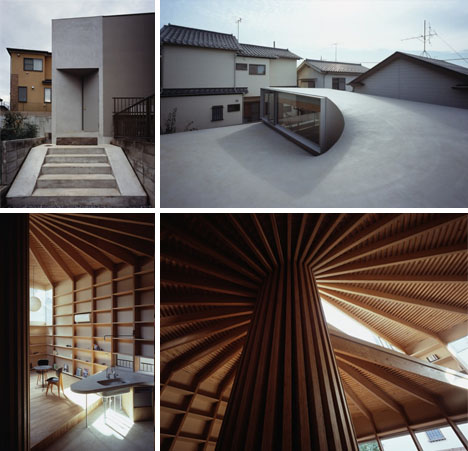

house from outside

The space inside is surprisingly open, warm and livable, in stark contrast to the squarish, bare-bones, gray-box appearance of the exterior. A conceptual wooden spiral radiates out from a strong and trunk-link central support column and the use of wood itself provides visual interest in what is a difficult and dark setting.

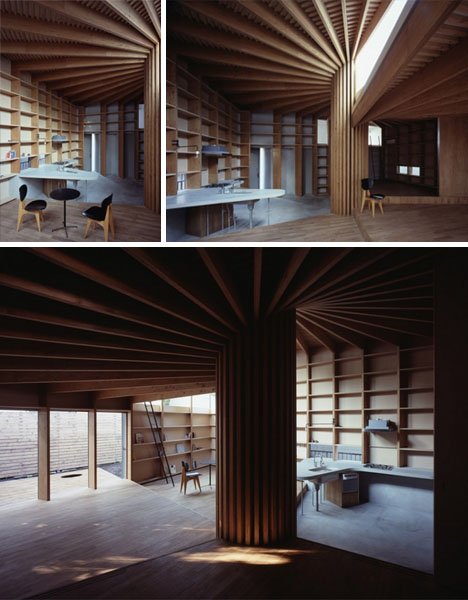

tree house interior

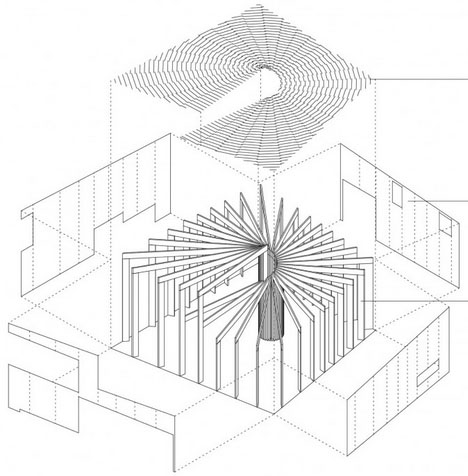

West meets East in the use of Cartesian and Polar coordinates to define the spiral effect, which is then systematically limited when the spokes (or, to continue the metaphor: branches) reach the edges of the home. These branches are reinforced and reiterated by smaller wooden cross-beams and a regular grid of built-in wall bookcases.

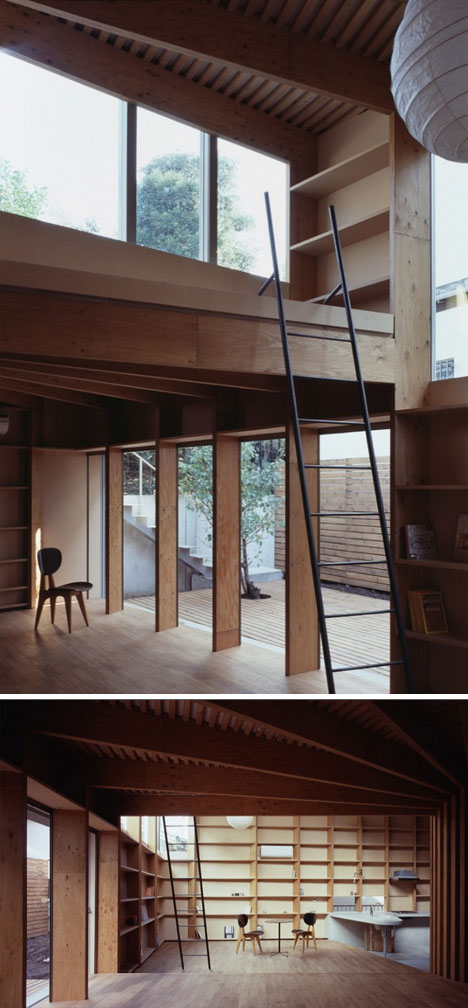

ree house loft

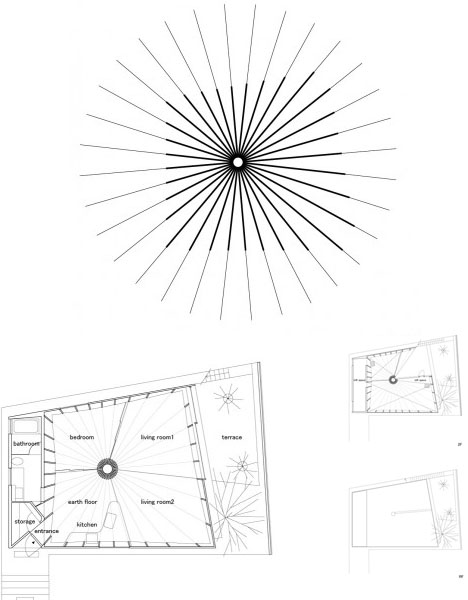

As per Japanese architectural traditions, four primary residential ‘zones’ are still established and balanced, though in a more abstract way than true tradition would dictate.

tree house spiral room

Heavy glue-laminated lumber (terminating in the middle pillar) makes the odd angles and custom lengths easier and cheaper, while providing plenty of structural support for the roof and rooftop deck above. The culmination of the spiral effect – itself a reflection of both the sloped site conditions and architectural choices – is an outdoor area in the one place that is able to get views beyond the site, a wide-open retreat from the cabin-like interior below.

tree house roof
tree house roof at night

“The site is located at the top of a hill connected with a narrow path leading to the actual building lot. The ground level is gradually climbing higher from edge of the site. Although the site has particular sense of oppression and dusky feel, and the actual building lot is completely enclosed by the adjacent houses, we realized with the characteristic of the place as the depths of the urban condition without exposing to the outside, and secluded from the town. In this case, it is more suitable to extend the volume vertically rather than horizontally. Similar reason can be found in the nature that a tree enclosed by other tall trees in a deep forest tends to have vertical directivity for its growth.”
